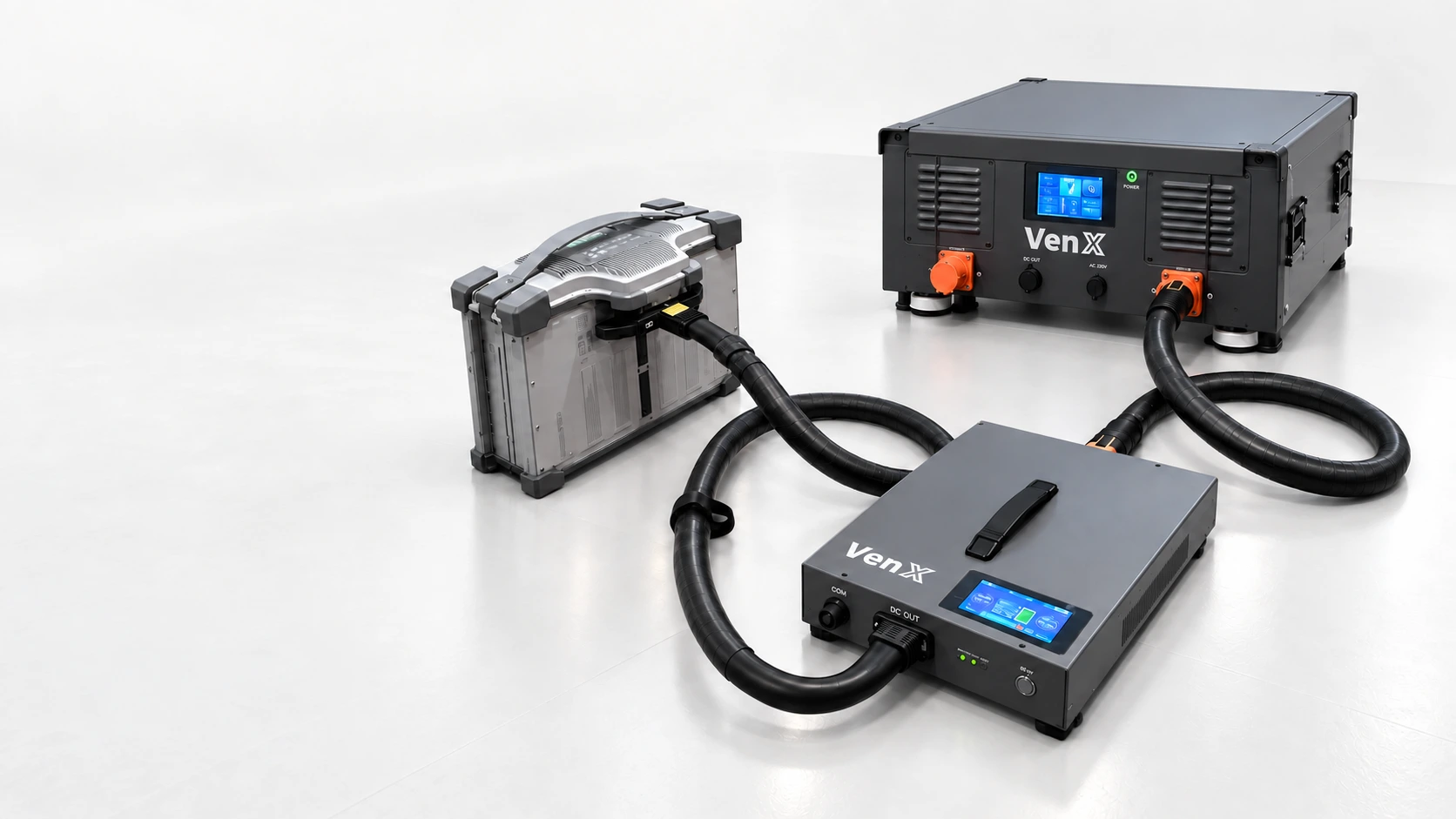

VenX OP-25 and DC-DC charger rapidly charging a DJI T100 agricultural drone battery

OP-25 · DJI T100 RAPID CHARGING

Fast charging for DJI agricultural drones.OP-25 × DJI T100

Name: VenX OP-25 Agricultural Drone Power Box
Brand: VenX
SKU: OP-25

Target charging window for a DJI T100 battery: 20% to 100% in approximately 8 minutes.

20%100%≈ 8 min

Target value for system validation. Actual charging time depends on battery temperature, starting charge, battery limits and final charger configuration.

Get an OP-25 recommendation

View system details ↓

01 · SCROLL EXPLORATION

Explore OP-25 layer by layer

Real product imagery and clear structural illustrations show how the enclosure, cells, BMS, dual displays and remote diagnostics work together.

VenX OP-25 system with IBC6000 and IBC10000 modules

VenX OP-25 custom-molded enclosure with IP54 marking

VenX in-house developed BMS circuit board with temperature-control visualization

VenX Power Box and DC-DC charger with separate status displays

Open VenX Power Box transmitting operating and fault data by Wi-Fi for remote diagnostics

NOW VIEWING

Complete field energy system

STAGE 01

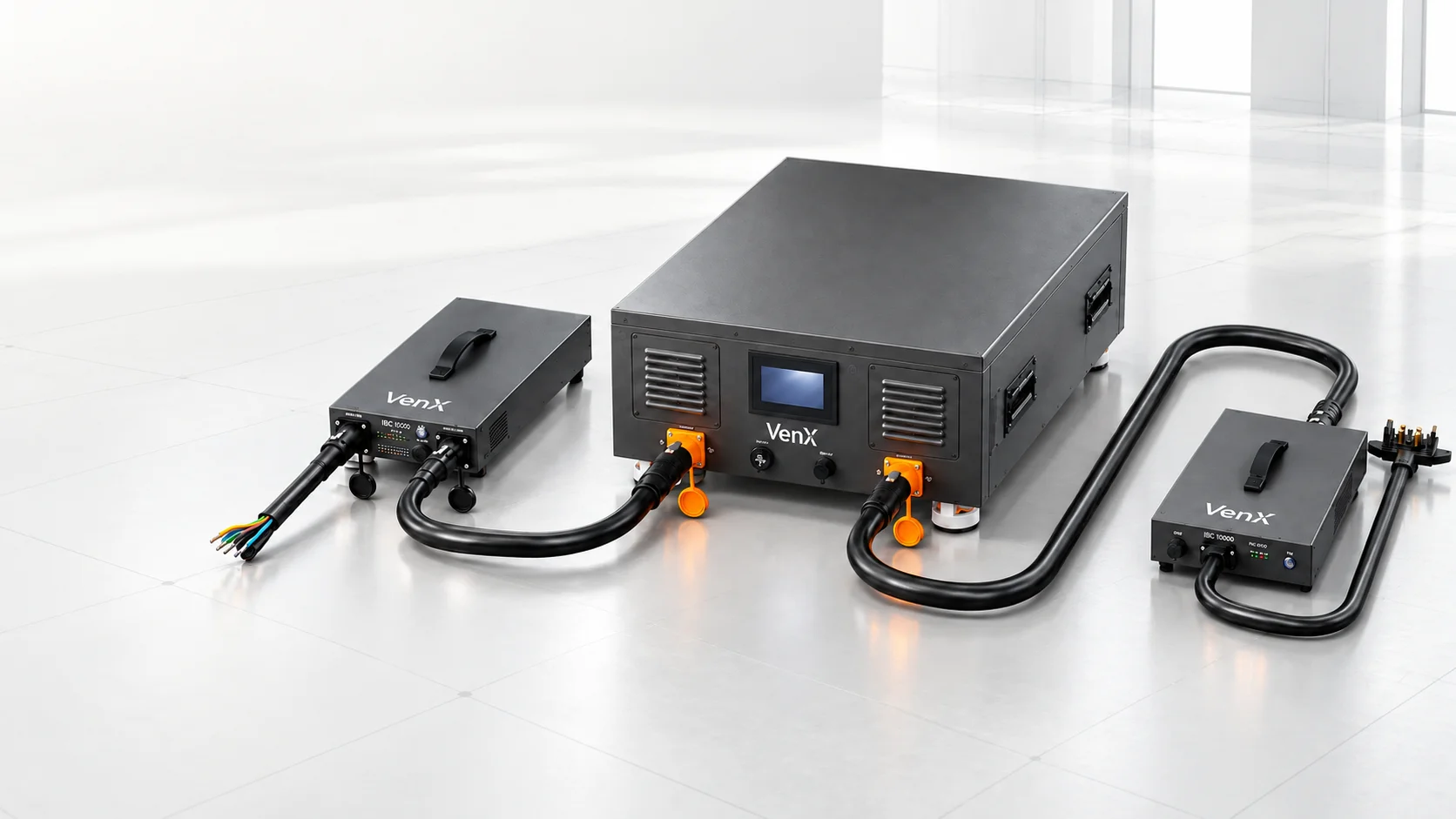

Complete field energy system

OP-25 brings the main battery pack and two dedicated charger modules together for field operation.

24.1 kWh · LFP · 314 Ah

STAGE 02

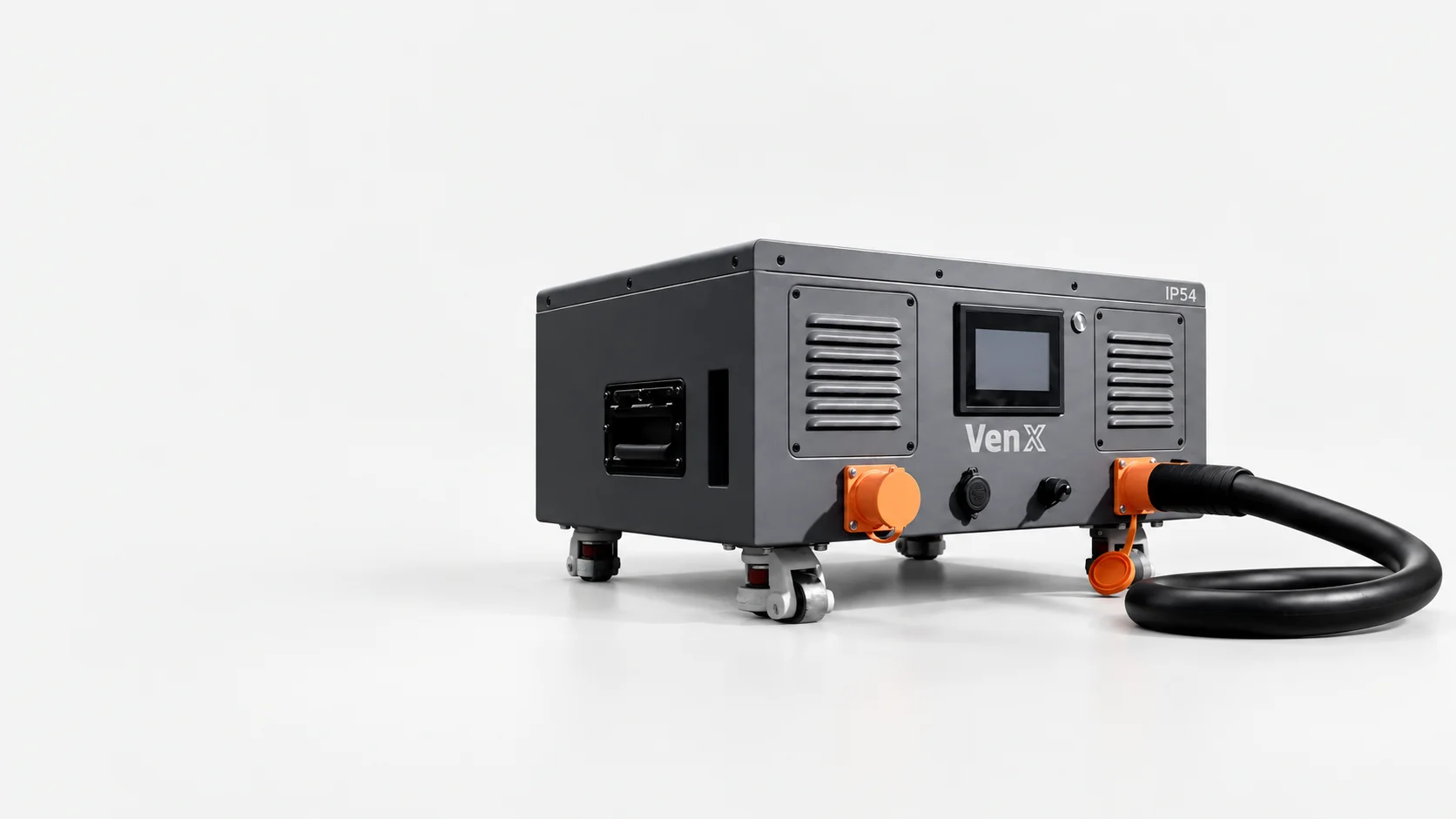

Custom-molded IP54 enclosure

The custom-molded IP54 enclosure provides strong protection for the battery cells and internal components, helping extend system service life.

IP54 enclosure protection

STAGE 03

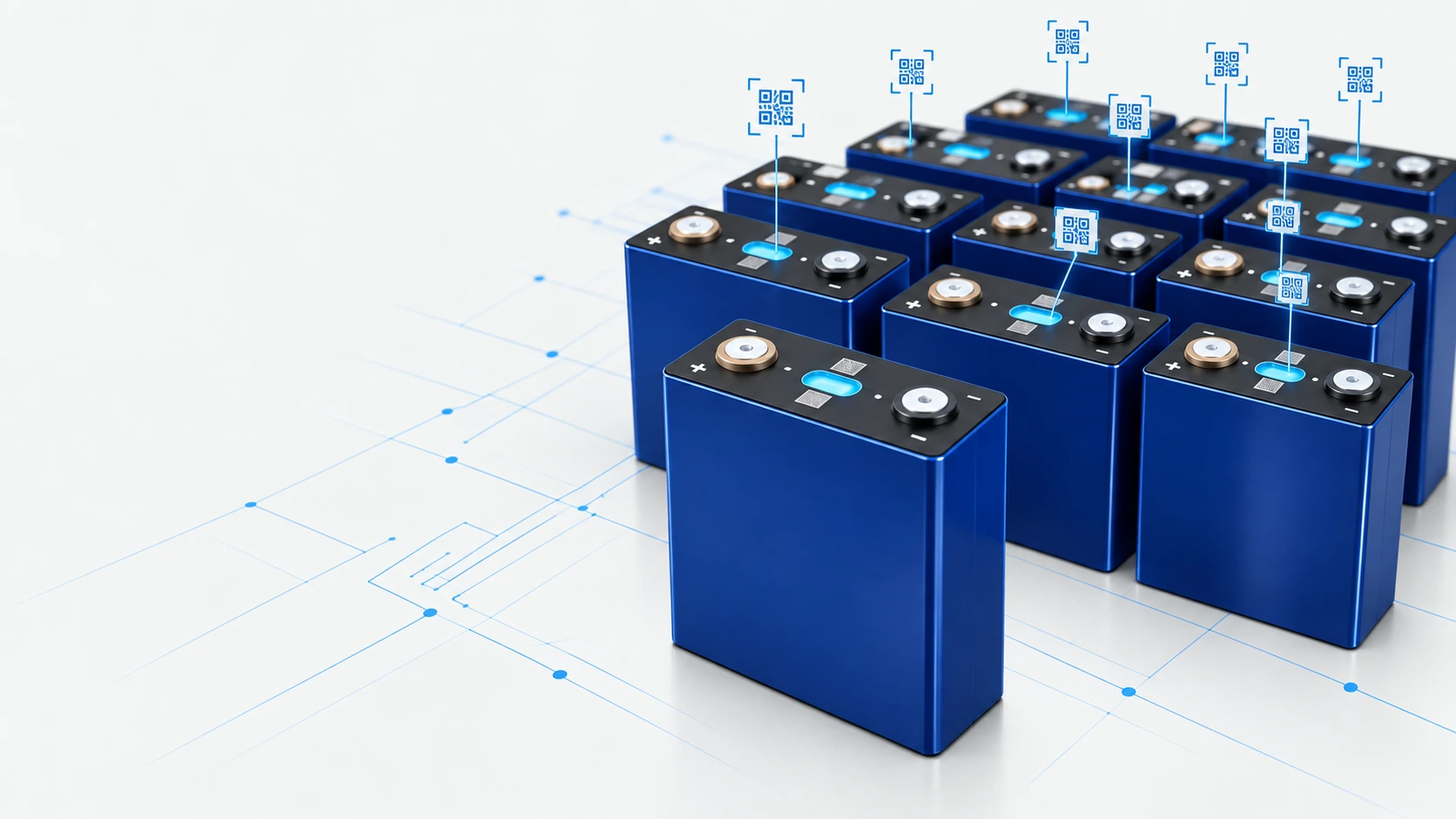

Brand-new Grade A cells

Every cell is brand-new, with no mixed used cells. Each cell has its own inspection report and individual QR-code traceability, providing a clear quality and origin record. Expected service life is more than 6 years.

Individual report · QR traceability · 6+ years expected

STAGE 04

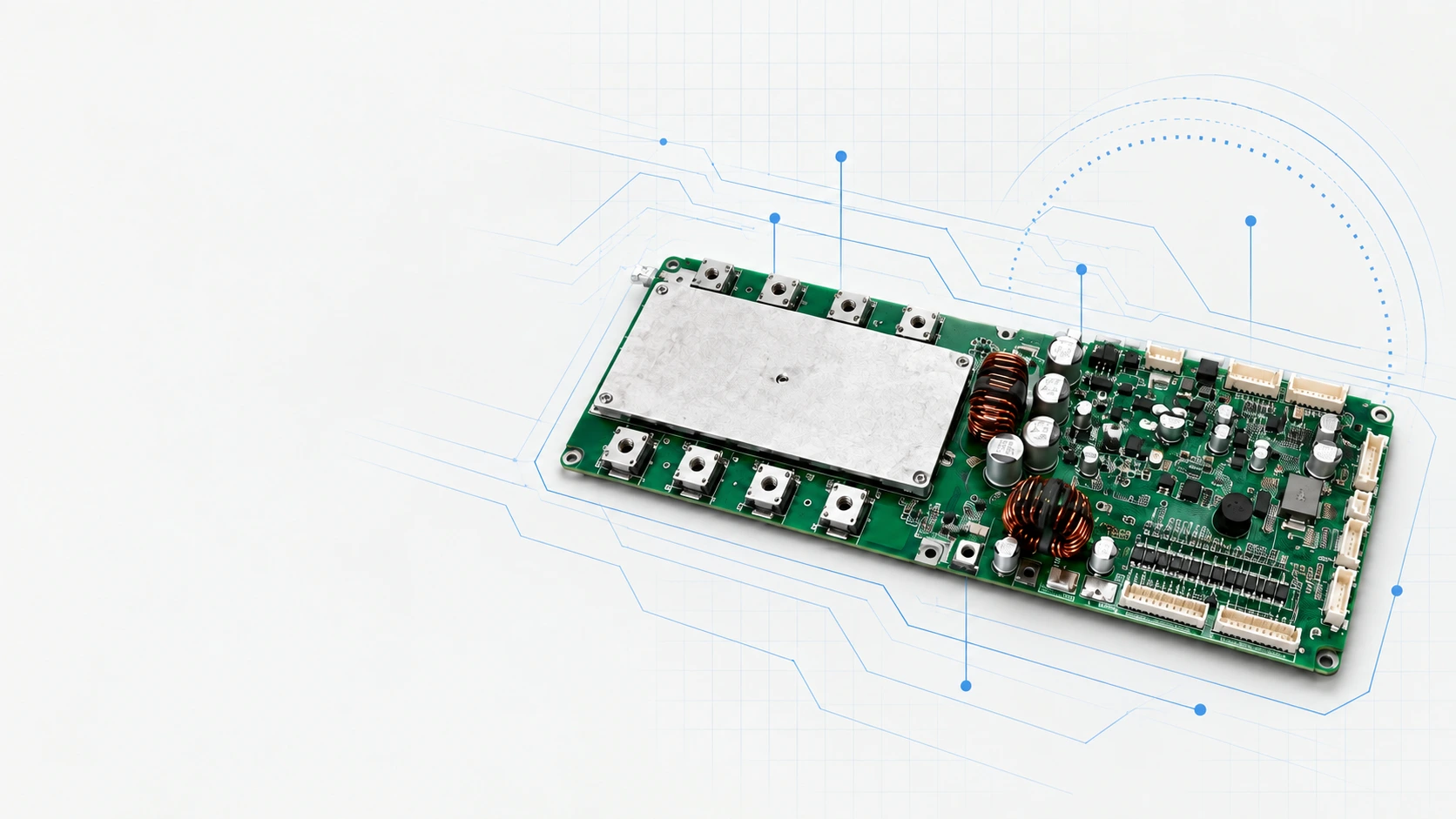

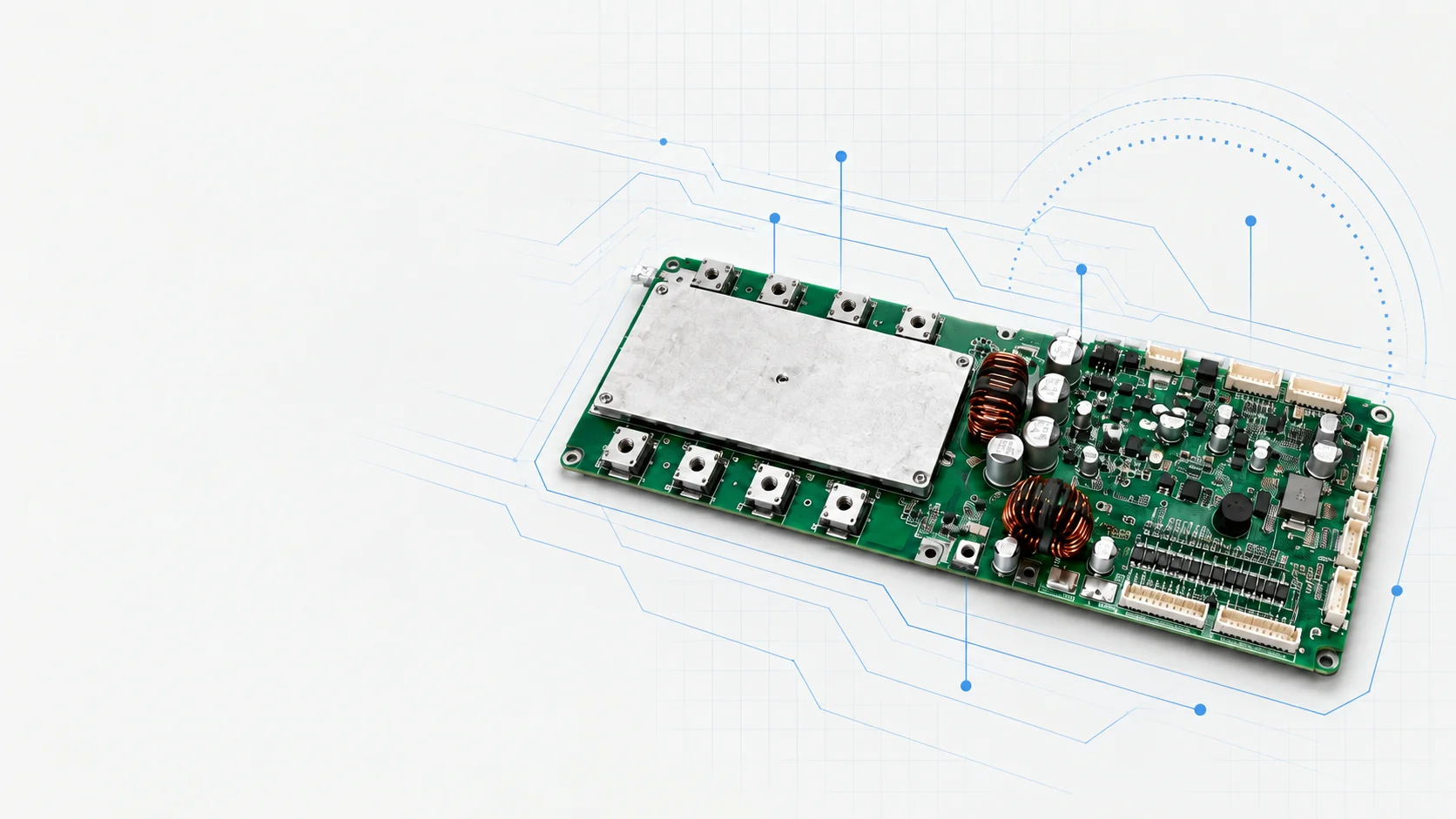

In-house developed BMS

Our in-house developed BMS delivers excellent temperature control, helping prevent overheating-related battery faults and extend battery service life.

Temperature control · Overheat protection

STAGE 05

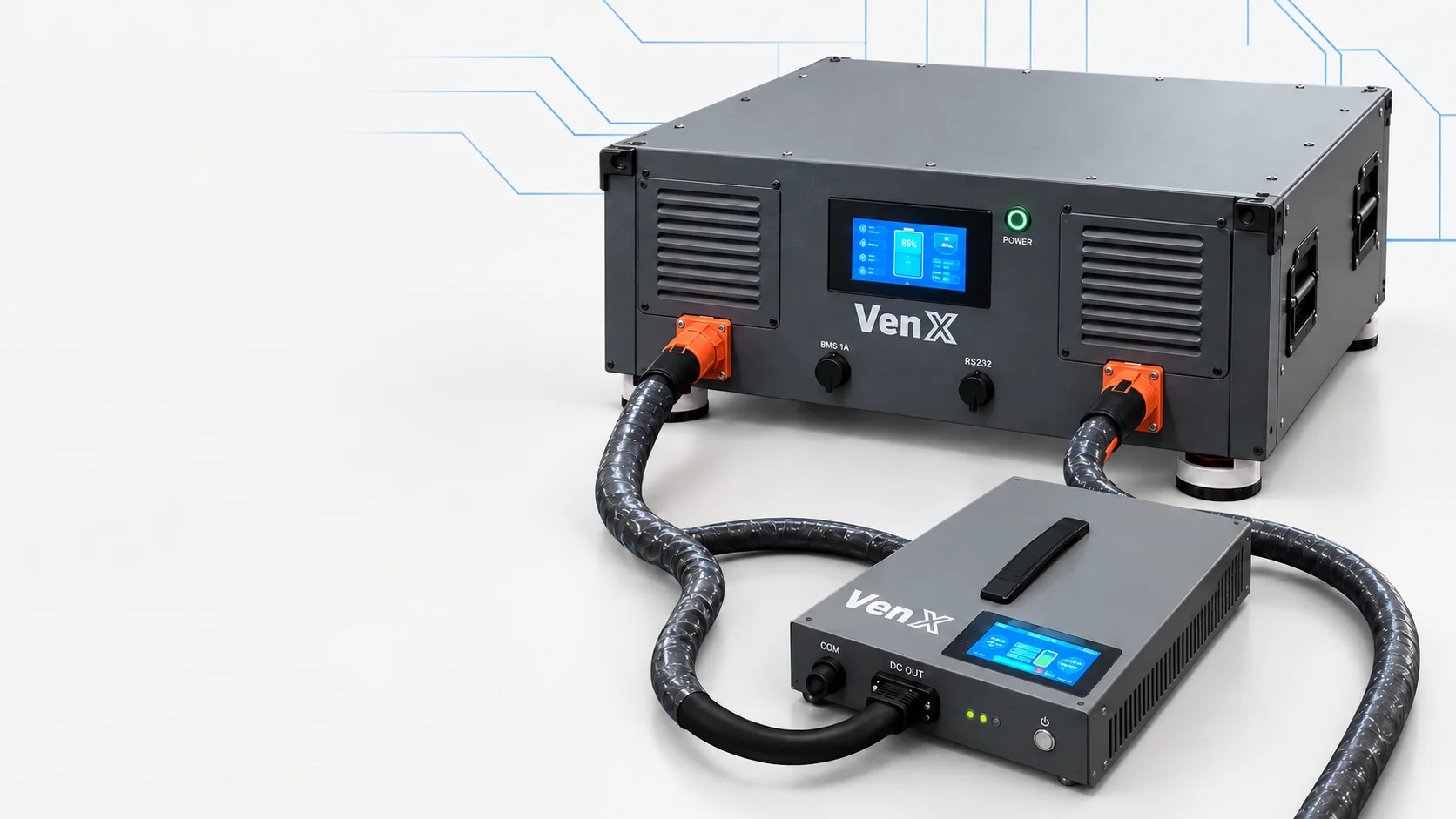

Two displays. Clearer planning.

The Power Box display shows battery status at a glance, while the DC-DC charger display shows charging progress. Together they make charging time easier to estimate and field work easier to plan.

Battery status · Charging progress · Better planning

STAGE 06

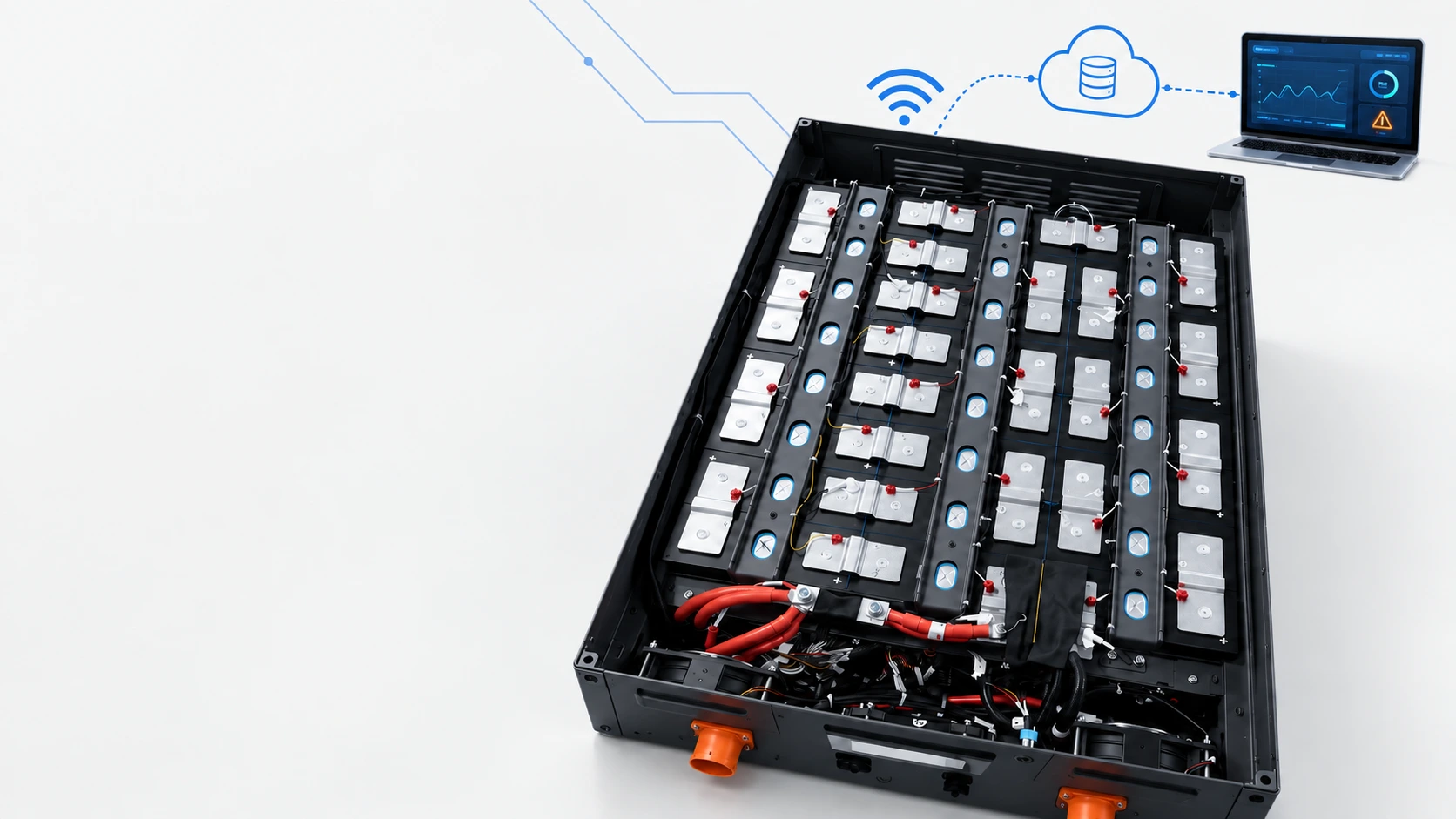

Remote intelligent diagnostics

Connect the Power Box to Wi-Fi to synchronize operating data and fault records with the technical support database. Authorized technicians can review diagnostics remotely and guide troubleshooting from anywhere, shortening response time and helping restore operation faster.

Wi-Fi data sync · Remote fault analysis · Faster support

STAGE 07

Reassembled and ready

The energy core, BMS, displays and control connections return inside the enclosed unit for field operation.

One system with clearly visible operating status

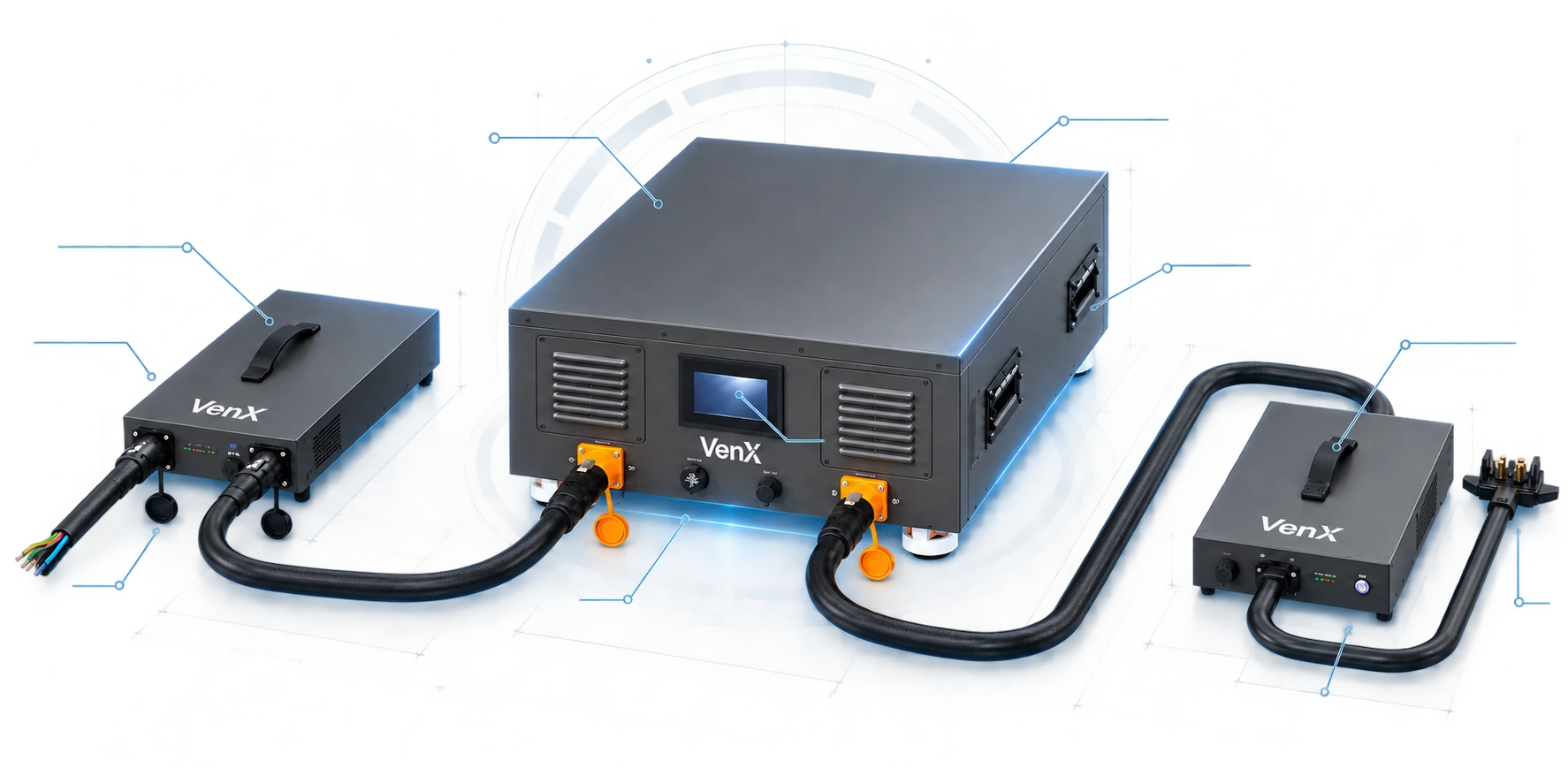

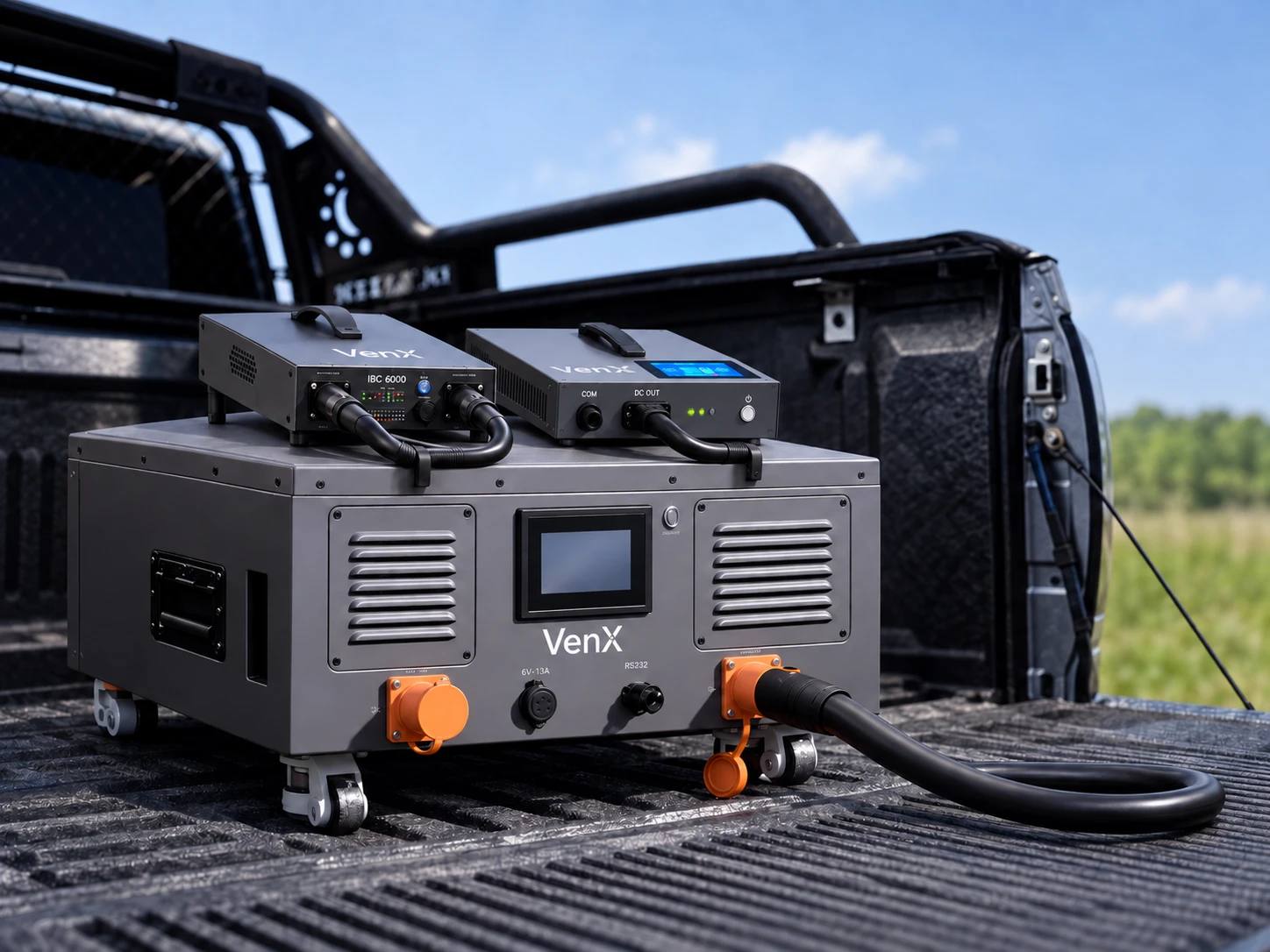

Complete VenX OP-25 system with IBC6000 AC-DC and IBC10000 DC-DC charger modules

OP-25 / COMPLETE SYSTEM

The full energy system behind the field workflow.

The VenX OP-25 combines a 24.1 kWh LFP battery pack with dedicated AC-DC and DC-DC charger modules for agricultural drone operations.

24.1

kWh

314

units in parallel

OP-25 specifications

Cell chemistry: LFP
Rated capacity: 314 Ah
Nominal voltage: 76.8 V
Nominal energy: 24.1 kWh
Battery configuration: 1P24S
Rated charge and discharge current: 150 A
Maximum charge and discharge current: 200 A
Operating voltage range: 67.2–84.24 V
Recommended rate: 0.5 C
USB output: 5 V / 65 W
Display: 4.3 inch
Protection rating: IP20
Operating altitude: ≤3000 m
Operating temperature: 0–50°C
Cycle life: ≥3000 cycles
Dimensions per unit: 820 × 580 × 248 mm
Net weight: 179 kg
Parallel connection: Up to 6 units

Ask about your charging setup

SYSTEM COMPONENTS

Battery pack and charger modules.

The large enclosure is the OP-25 battery pack. IBC6000 accepts AC input, while IBC10000 provides high-power DC-DC charging for the drone battery workflow.

IBC6000 AC-DC

View charger specifications

Slim charger module for AC input.

Dimensions: 440 × 242.2 × 76 mm
Weight: 7.5 kg
Rated input: 220 Vac
Input range: 90–264 Vac
Derating: 2000 W at 90–185 Vac input
Output: 60–87.6 Vdc and 0–70 A
Rated power: 6 kW
Connection: L+N+PE
Cooling and protection: Forced air cooling and IP20

IBC10000 DC-DC

View charger specifications

High-power charger module for agricultural drone batteries.

Dimensions: 440 × 272.2 × 76 mm
Weight: 10.5 kg
Input: 60–87.6 Vdc
Output: 50–60 Vdc and 0–200 A
Factory default current: 150 A
Maximum power: 12 kW
Cooling and protection: Forced air cooling and IP20

04 · VIDEO WALKTHROUGH

OP-25 video walkthrough

See the system in use and choose the walkthrough that matches your work.

OP-25 overview

A practical walkthrough of the system structure and power flow for quick customer understanding.

Watch on YouTube ↗

OP-25 in real use

Watch OP-25 charging a T55 agricultural drone battery during a field test.

Watch on YouTube ↗

PRODUCT MANUAL

OP-25 manual in English, Thai, Spanish and Portuguese.

Download PDF

BEFORE YOU CHOOSE

Frequently asked questions.

Will it work with my drone or equipment?

We need to check the drone and battery models and the charging system before confirming compatibility.

Can OP-25 be assessed for DJI Agras T100, T50, T40, T25 or T20P?

Yes. We can assess projects for these DJI Agras families, but compatibility is confirmed only after checking the exact battery, charger, voltage, connector and operating conditions.

How is a Power Box different from a gasoline generator?

OP-25 supplies stored electrical energy without combustion exhaust at the point of use. Daily capacity and the method used to recharge the Power Box must still be planned for the real workload.

How are the estimates of 20 and 40 batteries calculated?

These figures are sales estimates. Actual quantity depends on target battery capacity, starting state of charge, environment and conversion losses.

What information should I prepare?

Drone model, battery model, required charging cycles per day and the charging power available on site.

What about use, delivery and support?

The OP-25 and charger modules are rated IP20. Installation requirements, shipping coverage and warranty terms are confirmed for the selected set and destination.
