OP-16 · THREE-PHASE GENERAL SOLUTION

Three-phase power for work in the field.OP-16 / 16 kWh + 15 kW

Name: VenX OP-16 Three-Phase Power Box
Brand: VenX
SKU: OP-16

LiFePO4 battery storage with 15 kW three-phase AC output for mobile equipment and backup power.

16 kWh

LiFePO4

15 kW

380 Vac

IP54

RS485

Request an OP-16 assessment

See what to prepare ↓

Each quotation confirms output, runtime, protection and connection requirements in writing.

01 · SYSTEM EXPLORATION

Explore the OP-16 system framework.

See how enclosure, energy storage, protection, controls and three-phase connections are considered together before a project configuration is confirmed.

NOW VIEWING

Three-phase field energy

STAGE 01

Three-phase field energy

OP-16 combines LiFePO4 energy storage with a three-phase AC inverter for mobile work and backup power

16 kWh · 15 kW

STAGE 02

IP54 modular enclosure

Separate battery and inverter modules keep the system organized for transport and installation

IP54

STAGE 03

LiFePO4 battery

Nominal battery energy is 16 kWh with 314 Ah capacity at 51.2 V and a 42–60 V operating range

16 kWh · 314 Ah · 51.2 V

STAGE 04

15 kW AC output

Three-phase output supplies 380 Vac with a pure sine wave at 50 Hz or 60 Hz

15 kW · 380 Vac · 50 / 60 Hz

STAGE 05

Controls and communications

The front panel brings the display and power connections together with RS485 communication

RS485

STAGE 06

AC charging input

Three-phase AC input is rated at 380 Vac and 15 kW. Single-phase 220 Vac is listed with its power rating to be confirmed

380 Vac · 15 kW

STAGE 07

Plan the complete installation

Match equipment startup demand runtime connectors and the number of battery modules before ordering

Configuration confirmed with your order

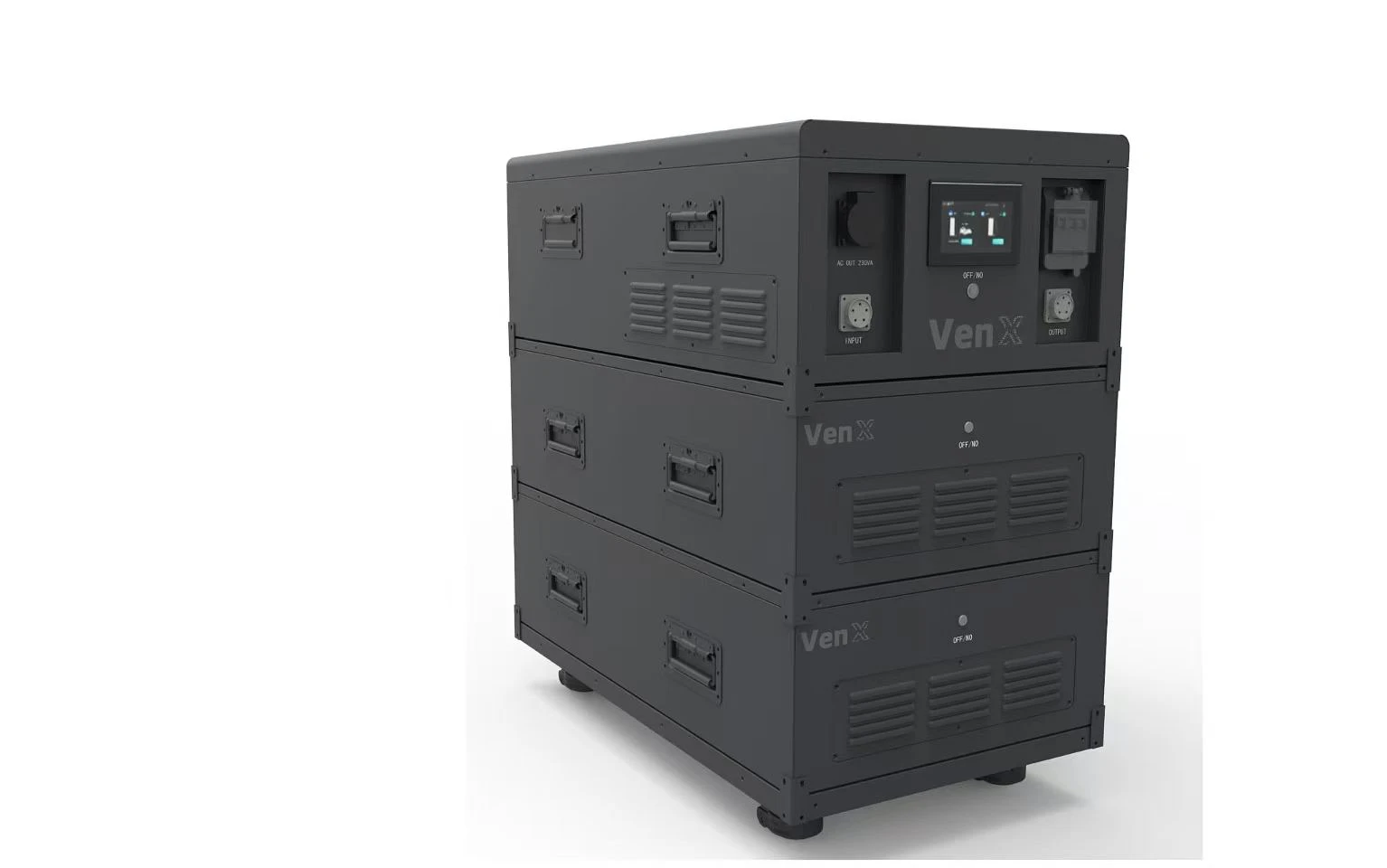

VenX OP-16 — Stacked configuration shown. Module count and total capacity follow the confirmed order

02 · OP-16

Technical specifications.

16 kWh battery storage and 15 kW three-phase AC power in a modular system.

OP-16 specifications

Battery chemistry: LiFePO4
Nominal energy: 16 kWh
Rated capacity: 314 Ah
Nominal voltage: 51.2 V
Battery voltage range: 42–60 V
Three-phase AC output: 15 kW / 380 Vac
Frequency: 50 Hz / 60 Hz
Waveform: Pure sine wave
Three-phase AC input: 380 Vac / 15 kW
Single-phase input / output: 220 Vac — power to be confirmed
Battery pack dimensions / weight: 790 × 585 × 257 mm / 140 kg
AC inverter dimensions / weight: 790 × 585 × 245 mm / 46 kg
Operating temperature: −10–50°C
Humidity: 5%–95%
Altitude: ≤2000 m
Protection: IP54
Communication: RS485

Single-phase power and AC charging configuration require confirmation. The supplied efficiency entry is ≤94% and its definition is pending confirmation

Ask for a quote

03 · PROJECT ASSESSMENT

Start with the equipment, then define the Power Box.

The safe starting point is the real load, its startup behavior and the work that must be completed each day.

Equipment nameplate review

Send clear photos of the equipment nameplate so voltage, phase, frequency, rated power and startup demand can be checked.

Runtime and operating pattern

Tell us the expected operating hours, duty cycle, rest periods and whether the equipment must start under load.

Site and delivery conditions

Share the operating environment, mobility requirement, destination and any connector or transport constraints.

Check the connected load, startup current and required runtime against the OP-16 ratings before ordering.

04 · POWER BOX ENGINEERING

See the current Power Box design approach.

This OP-25 overview is a family reference and does not state OP-16 performance.

Power Box family overview

See the OP-16 specifications above for this model.

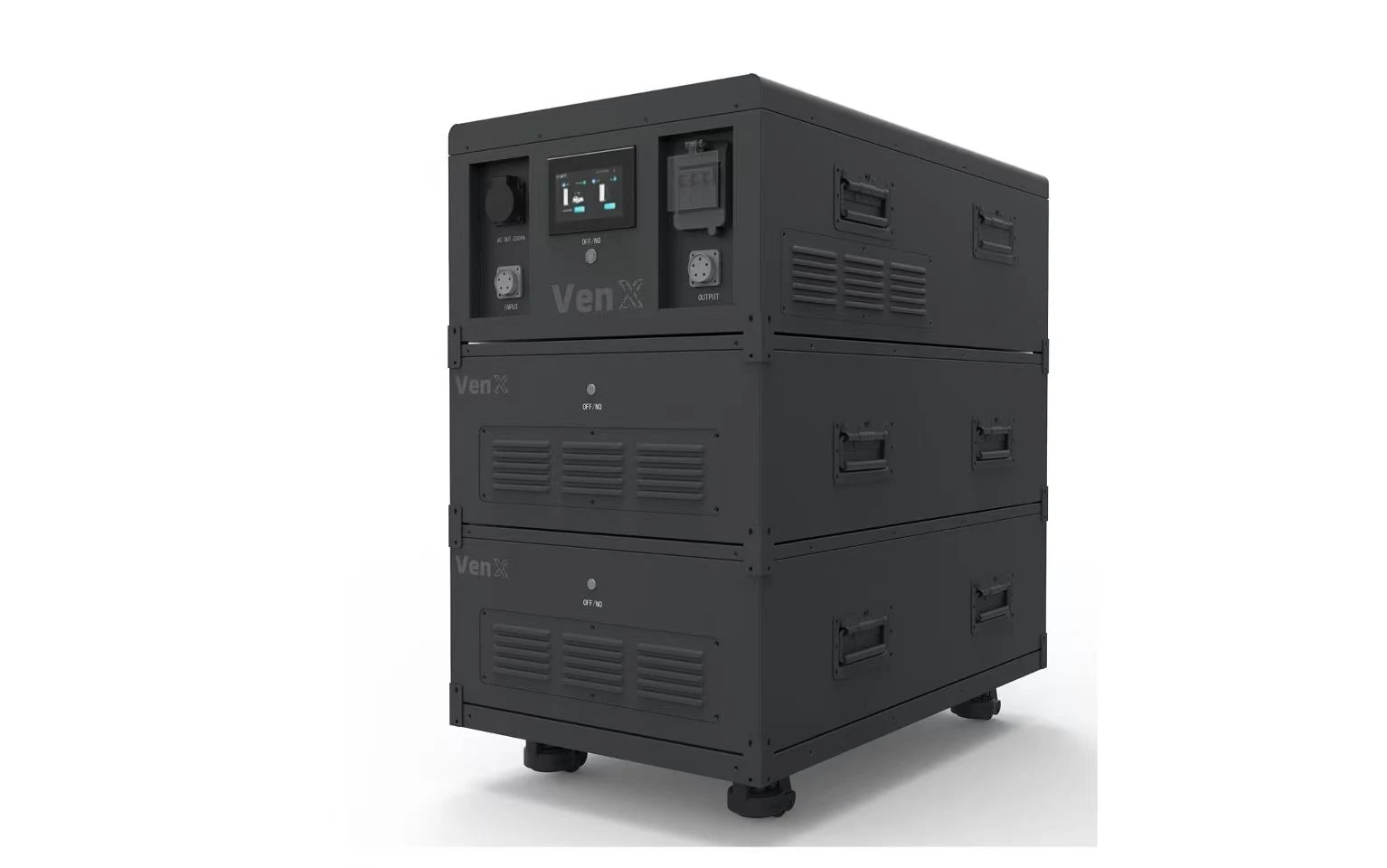

Reference front panel for the VenX three-phase Power Box

05 · CONNECTION REFERENCE

Clear controls and separated power connections.

Final connector layout will follow the confirmed OP-16 configuration.

OP-16

Product brochure.

English PDF · VenX manufacturer brochure

Download PDF

BEFORE YOU CHOOSE

Frequently asked questions.

What are the main OP-16 ratings?

16 kWh LiFePO4 battery energy and 15 kW three-phase AC output at 380 Vac

Does the pictured stack mean 32 kWh?

The image shows a stacked configuration. The supplied nominal battery specification is 16 kWh. Total capacity and module count follow the confirmed order

Is single-phase output also 15 kW?

The supplied data lists 220 Vac single-phase input and output but leaves single-phase power unspecified. Confirm it before selecting single-phase equipment

What should I send for a quotation?

Equipment nameplate voltage frequency rated and startup power daily runtime destination and available charging supply
